In the field of motion systems, pulley wheels remain indispensable for guiding cables, supporting loads, and ensuring smooth linear or rotational movement. Among the diverse pulley designs available, U-groove double channel pulley wheels play a specialized and vital role — particularly in equipment that demands precise cable alignment, dual-track guiding, and enhanced load control.

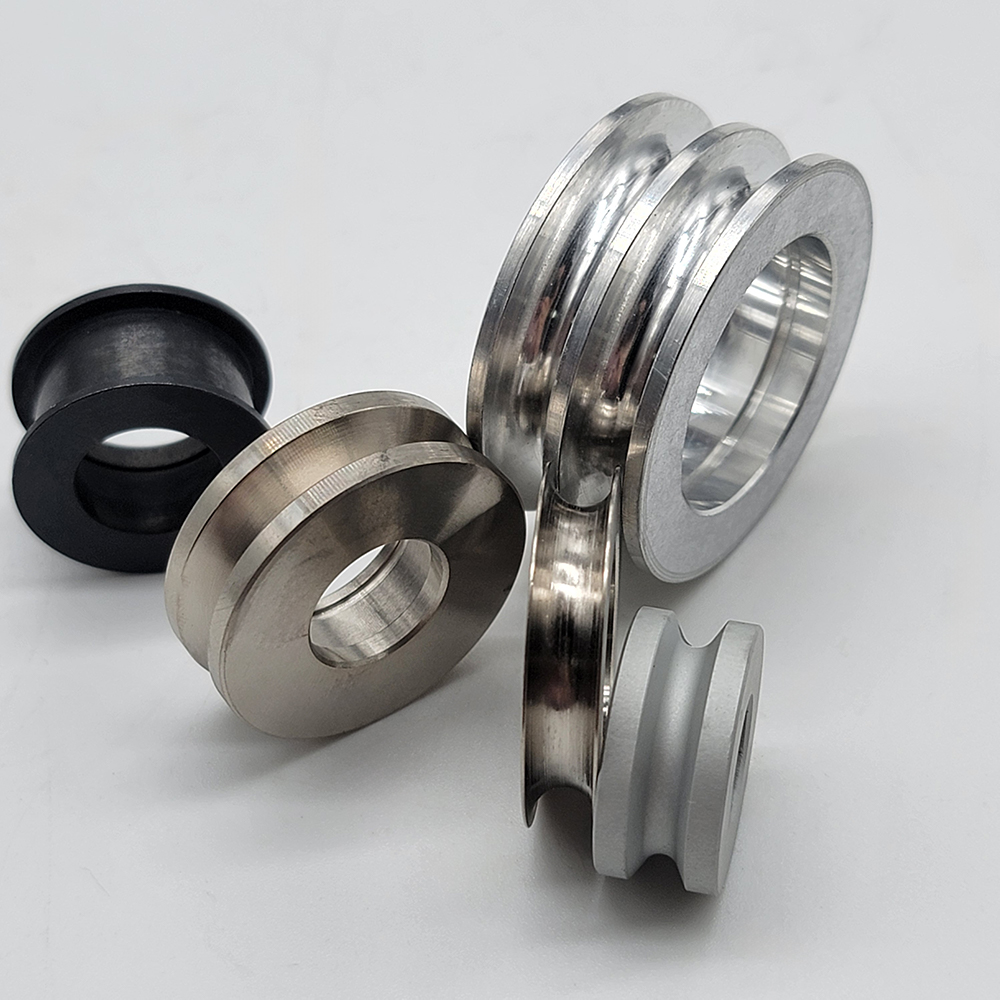

What Are U-Groove Double Channel Pulley Wheels?
A U-groove double channel pulley wheel is a type of pulley wheel that features two distinct Ushaped grooves, typically machined or molded on the same wheel body. These grooves are designed to support two parallel cables, wires, or belts, or to provide additional stability for a single wider guiding element.
Compared to flat-face or single-groove pulleys, this design provides:
- Improved directional control
- Improved directional control
- Redundant support in cable-based systems
The grooves are typically shaped in a semi-circular profile to match the contour of steel cables, coated wires, or tensioning ropes used in industrial setups.
Structural Materials and VariantsU-groove double pulley wheels are manufactured using a range of materials based on load, speed, and environmental requirements:
- Aluminum Alloy: Lightweight, corrosion-resistant, and ideal for automated systems.
- Carbon Steel: Suitable for heavy-duty use; often coated for rust resistance.
- Carbon Steel: Suitable for heavy-duty use; often coated for rust resistance.
- Polyurethane or Rubber-Coated Grooves: Reduce noise and wear on guiding elements.
- Plastic Core with Metal Bearings: For light-duty, economical systems.
The bearing system (usually deep-groove ball bearings or precision roller bearings) ensures lowfriction rotation and longevity under dynamic loading.
Key Functional Advantages
- Dual Cable Guidance
Double grooves allow two cables to run parallel without crossing or interference, ensuring consistent tracking and reducing the chance of cable overlap or derailment.
- Enhanced Load Balance
In hoisting or linear systems, using two grooves helps distribute load more evenly across the wheel surface, minimizing point wear and prolonging equipment life.
- Redundancy forSafety
In critical systems such as lift assemblies or tensioning devices, the second groove can serve as a safety backup, ensuring continued function if one cable fails.
- Better Side Load Resistance
The groove structure provides inherent lateral containment, which helps prevent cable slippage and improves operational precision under misalignment conditions.
The U-groove double channel pulley wheel is not a commodity — it's a specialized tool that contributes significantly to the precision, safety, and stability of cable-based motion systems. From hoisting applications to automation lines, it offers engineers a dependable and versatile component with measurable benefits.
