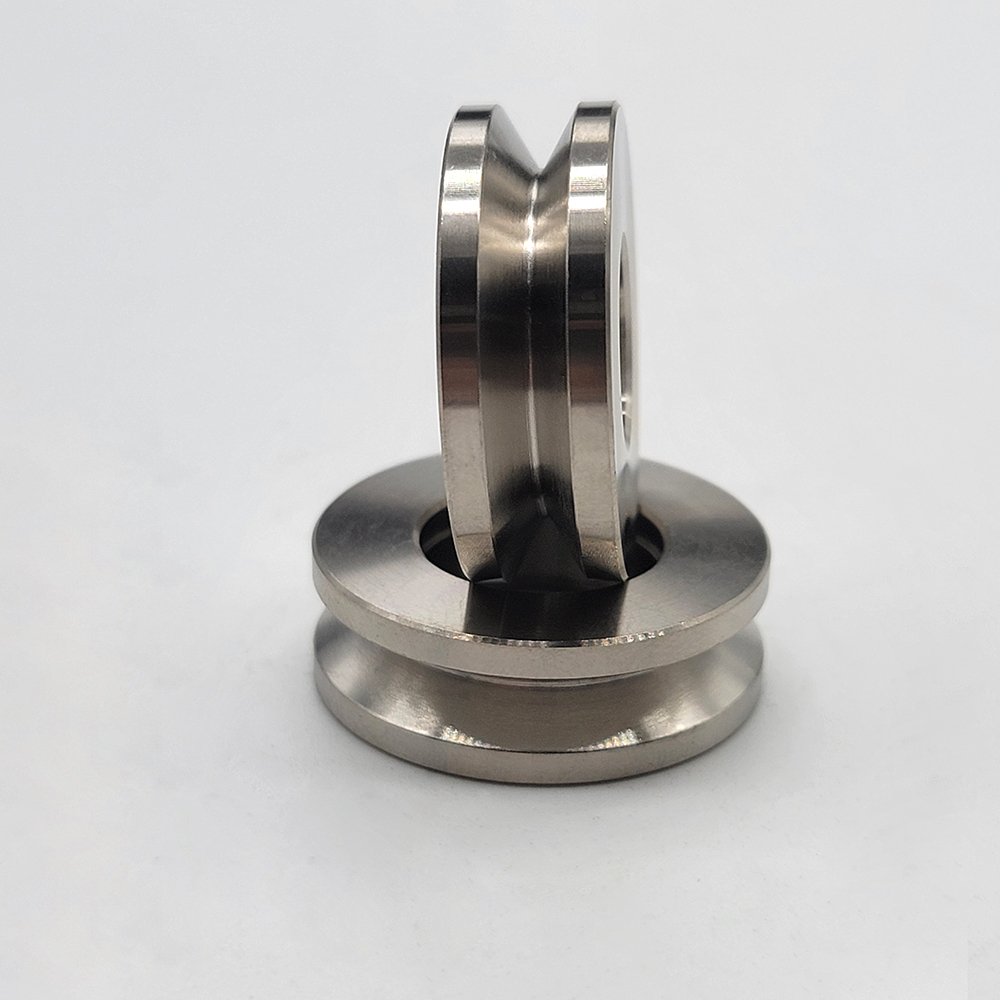

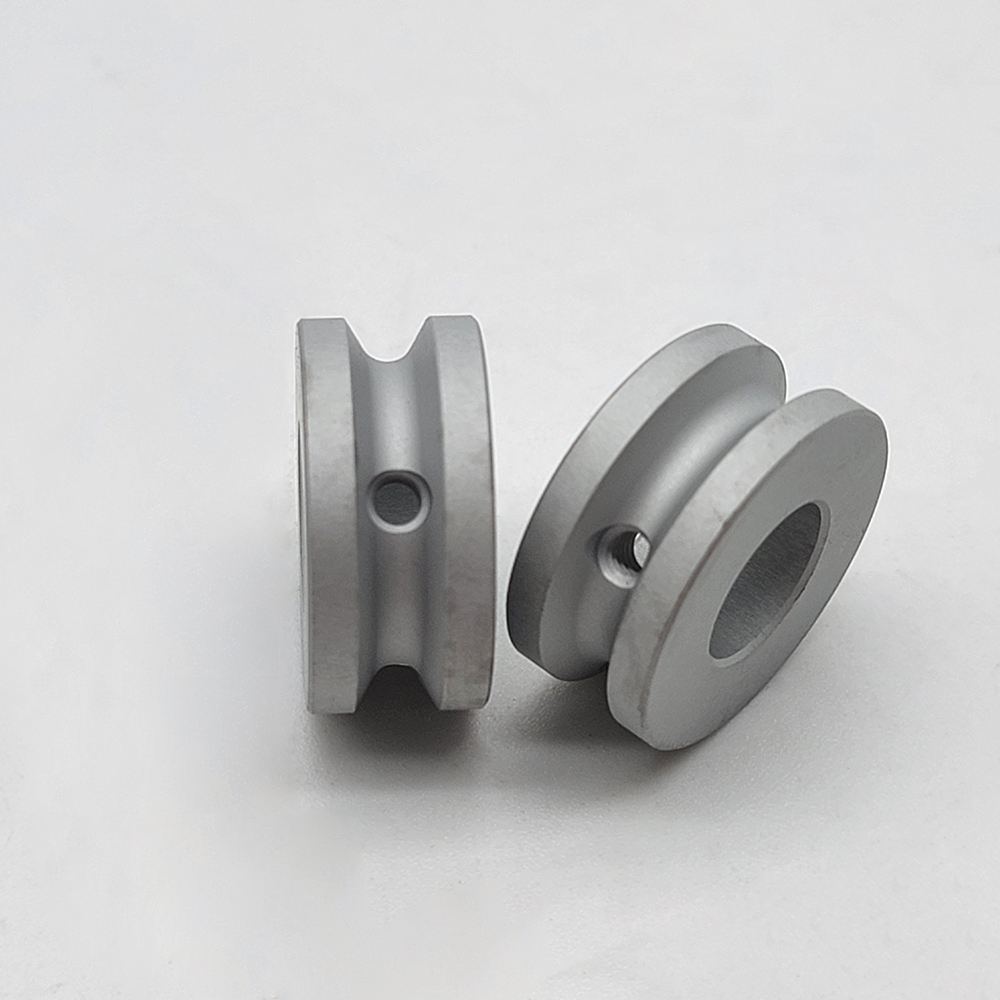

The V-shaped pulley wheel is a foundational component in mechanical transmission systems. Recognized for its characteristic angled groove, the V-pulley (also known as a V-belt pulley or sheave) is specifically engineered to work in tandem with V-belts. These belts wedge into the groove, allowing for high-friction, slip-resistant engagement. Unlike flat or round-groove pulleys, Vshaped pulleys are used primarily in systems that demand efficient power transmission between shafts, especially where load, speed, and torque must be managed reliably
The defining feature of the V-pulley is its trapezoidal groove, usually angled at 30°, 40°, or 60°, depending on the standard belt type (e.g., A, B, C, SPZ, SPB, etc.). The sides of the groove grip the belt, rather than the bottom, which serves three key functions:
- Increased Friction: The wedging action of the belt into the groove increases the contact surface area, allowing for greater torque transfer.
- Belt Tracking: The geometry prevents the belt from slipping off during operation, especially at higher rotational speeds.
- Compact Transmission: Enables more torque to be transferred with smaller pulley sizes compared to flat systems.
Multiple grooves can be machined into a single pulley for multi-belt systems, improving load distribution and system redundancy.
Materials and Surface Finishes
V-pulleys are typically manufactured using:
- Cast Iron: The industry standard for durability and vibration damping; suitable for most general-purpose industrial applications.
- Steel: Used for high-speed or high-torque conditions where strength-to-weight ratio is critical.
- Aluminum Alloy: Ideal for applications requiring low inertia or where weight reduction isl necessary (e.g., mobile machinery, electric motors).
- Engineering Plastics: Nylon or reinforced POM used in low-load, corrosion-sensitive environments.
Industrial Applications of V-Shaped Pulley Wheels
- Power Transmission in Industrial Equipment
- HVAC Systems
- Agricultural Machinery
- Textile and Packaging Machinery
- Automotive Sector
V-shaped pulley wheels are a cornerstone of mechanical power transmission, offering a proven, cost-effective, and durable solution for countless industrial tasks. From factory conveyors to agricultural machinery, their ability to deliver torque efficiently and reliably makes them a favored choice across generations of engineers.
